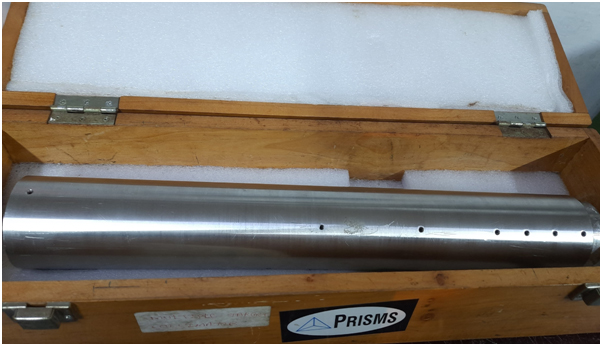

Multi Target Collimator

The Multi Target Collimator is the precision engineered instrument that narrows the beam of waves or particles. The beam is more aligned either in the direction of motion or in a specific direction. This cause the spatial cross section of the beam and make it smaller. The target collimator is specially designed for collimating test and instrument adjustment applications. The target collimator is sturdily constructed, light in weight system and is very much ideal for depot, production and laboratory applications.

The system assure high target definition and high optical clarity. The adjustable target can be centered on the mechanical axis of the collimator and can also be illuminated if required.

Multi Target Collimator

Multi target collimator is specifically designed for use in collimating test stands and instrument adjustment applications. Use it to test the straightness of the line of sight of your optical instruments or as a general purpose infinity collimator. It has eight filar/bi-filar targets placed at various optically-simulated distances. Each target contains a label identifying its "distance" along the optical path. This allows you to test and calculate the deviation of any optical instrument's line of sight from a perfectly straight line. A special objective system assures high target definition and optical clarity. Each target is adjustable and may be centered on the mechanical axis of the collimator if desired. Targets are illuminated using the low-voltage light source (included) for backlighting.
