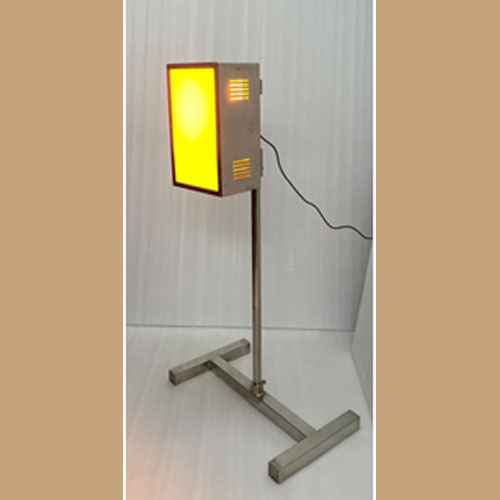

Monochromatic Light Source MLS-01

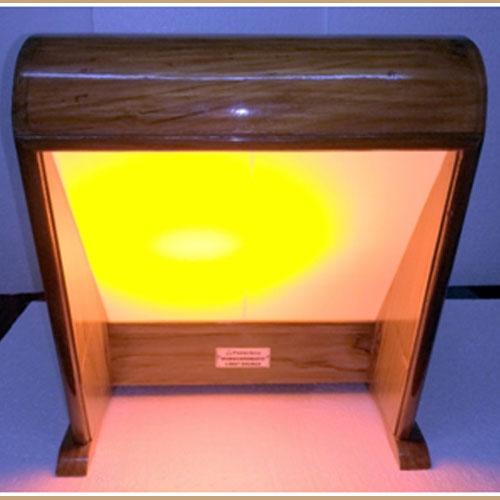

Prisms India offers two different types of Monochromatic Light source. Monochromatic Light sources are used in Calibration labs for inspection of Micrometer Anvils & Mechanical Seals, Pump Valves and various other Automotive Parts manufacturers. Prisms India Monochromatic Light Source provides highly diffused Sodium light for use in testing flatness of flat parts with Master Optical Flats. Sodium Vapour Light is directed on to the component under inspection through a plane acrylic sheet with a straight line marked on its face. It produces Excellent Contrast Fringes.

Additional Information:

• Item Code: MLS-01
• Delivery Time: Ex-Stock to 2 weeks
• Packaging Details: 635 x 457 x 406 mm

Product Details :

Minimum Order Quantity	1 Piece
Usage/Application	Micrometer Calibration and Machnaical Seal Flatness Inspection
Brand	Prismindia
Material	Teak Wood or MDF Wood
Model Name/Number	MLS-01
Color	Wood
Diameter	150 mm
Light Source	35W Sodium
Wavelength	0.575 micron
packed dimension	635 x 457 x 406 mm
Country of Origin	Made in India

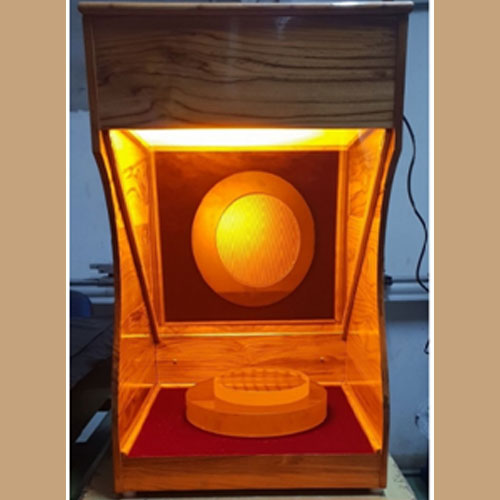

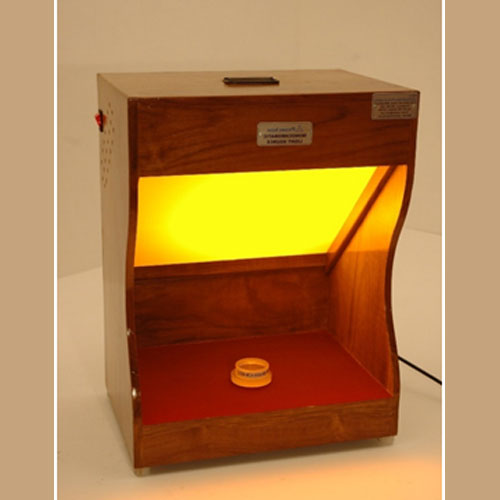

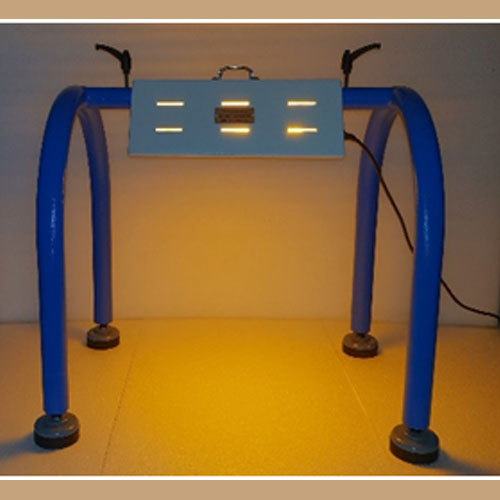

Model MLS-01: This is used when the Optical Flat is less than 150 mm diameter. The Optical Flat is placed over the polished part under inspection. The light bands are viewed over the Optical Flat from above

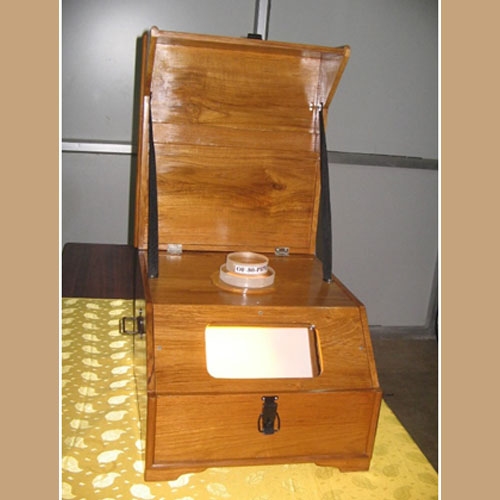

Model MLS-02: The part to be inspected is placed over the Optical Flat and the light bands are viewed from beneath after reflection from a mirror. This Type Monochromatic Light Source is used when the part under inspection is thin and of large diameter. If an Optical Flat of large diameter is to be placed on such thin parts there would be deformation of fringes due to the weight of large size Optical Flat. To avoid this the part to be inspected is placed over the Optical flat and the fringes are viewed after reflection from a mirror placed below.

The Master surface of the Optical Flat face upwards and the test surface face downwards and are in contact to view the light bands. MLS-02 is suitable for use with 200 mm diameter Optical Flat. On request MLS to suit Optical Flats larger than 200 mm diameter is manufactured against specific Order.

Specification:
Material: Teakwood construction
Light Source: 35W Sodium
Wavelength: 0.575 micron = Power 220V/50HZ (110V available on request)

Instrument	Dimensions	Packed Dimensions	Net Weight	Gross Weight
MLS-01	410 x 310 x 520 mm	635 x 457 x 406 mm	9.75 Kgs	13 Kgs
MLS-02	520 x 400 x 325 mm	635 x 457 x 406 mm	16.25 Kgs	20 Kgs
