Instrument Stands

Pedestal Stand: PDS

Pedestal Stand: PDSThe Pedestal stand is Sturdy and facilitates working height ranging from 21” to 42”.
Coarse vertical movement is operated by the hand wheel.
Fine vertical movement is also provided by means of knurled knob.
Castor wheels are provided to roll from one place to another in shop floor.
Three Levelling Screws are provided for resting on the ground. Precision Horizontal stand of Alignment Telescope / Autocollimator can be mounted over this.

Vertical Movement: 21” to 42”
Vertical Axis Rotation: 360 degrees
Fine Vertical Axis Movement: 5 mm
Base Diameter: 600 mm
Weight: 30 Kgs

Angle Dekkor Stand: ADS

Angle Dekkor Stand: ADSGenerally used in Optics Industries and by Angle Gauge manufacturers.
The tilting Flat pillar facilitates viewing at a desired angle.
High quality clamping handles are provided for firm holding.
Parts under inspection placed on the tilt table could be fine adjusted.

Vertical Movement: 200 mm
Vertical Column tilt: 180 degrees
Horizontal axis Rotation: 360 degrees
Cast iron Base: 300 x 300 mm
Tilt Table platform: 3” x 3”
Weight: 15 Kgs

Bench Top Stand: BTS

Bench Top Stand: BTSGenerally used for Autocollimator & Alignment Telescope for Industrial application.
Autocollimator axis could be tilted to align with reference to Mirror.

Vertical Movement: 200 mm
Horizontal axis Rotation: 360 degrees Kinematic Tilt for Autocollimator axis
Cast iron Base: 300 x 300 mm
Weight: 15 Kgs

Standard Horizontal Stand: SHS

Standard Horizontal Stand: SHSA most economical and simple horizontal stand with tilting screws
Provided with three levelling screws with lock nuts and resting button.

Three levelling Screws
Three Naval Buttons for resting the screws

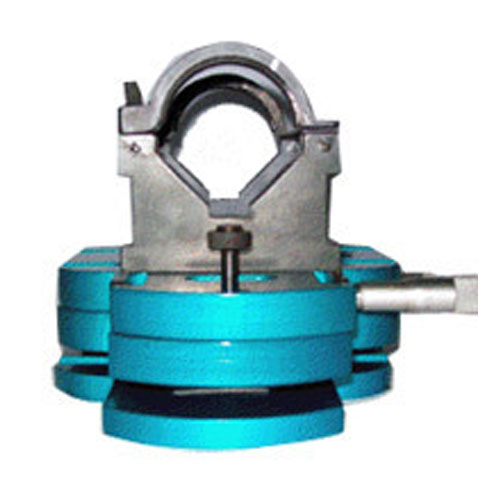

Autocollimator/Alignment Telescope Precision Horizontal Stand

Autocollimator/Alignment Telescope Precision Horizontal StandAutocollimator/Alignment Telescope Precision Horizontal Stand has provision for clamping to a table or work bench.
Two axis adjustment (vertical & horizontal) Screws are provided for alignment.
Generally used for Autocollimators.
V-Brackets are provided for better positioning of the Autocollimator tube.
Linear movement in horizontal plane can also be provided for use with Alignment Telescope.

Product Details :
FeaturesTwo Axis Tilt
Model NumberPHS

Vertical tilt
Horizontal swing
Base Plate Clamping facility

Tripod Stand: TPS

Tripod Stand: TPSAn ideal stand for use in Machine Shops with machines or Surface Table of varied heights.
Foldaway handle avoids damage in transport. More suitable for service providers.
Precision Horizontal stand of Alignment Telescope / Autocollimator can be mounted over this.

Material: Al + Steel
Max Ht: 217 cm
Max Ht with Center column down: 190 cm
Min Ht: 44 cm
Closed Length: 94 cm.
Weight: 6.1 Kgs
Load Capacity: 12 Kgs
