Right Angle Prism - 22 mm

Right Angle Prism Right Angle Prism - 22 mm is a most commonly used prism. It has two 45° and one 90° angles. The normal use for a right angle prism is to turn light through 90° by reflection from the hypotenuse. These are also called Porro prisms for specific applications.

Specifications:
Material BK7 Grade A optical glass/Fused Silica
Dimension Tolerance +0.0, -0.20mm
Clear Aperture >90%
Surface Figure N4 @ 632.8 nm
Surface Quality 60-40 scratch and dig
Bevel <0.25mm× 45°

A=B=C(mm) 10 Sec. Deviation 1 min. Deviation 3 min. Deviation 10 Sec. Deviation 1 min. Deviation 3 min. Deviation
Part No Part No. Part No. Part No. Part No. Part No.
5 RAP-05-10S-BK7 RAP-05-1M-BK7 RAP-05-3M-BK7 RAP-05-10S-FS RAP-05-1M-FS RAP-05-3M-FS
10 RAP-10-10S-BK7 RAP-10-1M-BK7 RAP-10-3M-BK7 RAP-10-10S-FS RAP-10-1M-FS RAP-10-3M-FS
18 RAP-18-10S-BK7 RAP-18-1M-BK7 RAP-18-3M-BK7 RAP-18-10S-FS RAP-18-1M-FS RAP-18-3M-FS
20 RAP-20-10S-BK7 RAP-20-1M-BK7 RAP-20-3M-BK7 RAP-20-10S-FS RAP-20-1M-FS RAP-20-3M-FS
25 RAP-25-10S-BK7 RAP-25-1M-BK7 RAP-25-3M-BK7 RAP-25-10S-FS RAP-25-1M-FS RAP-25-3M-FS

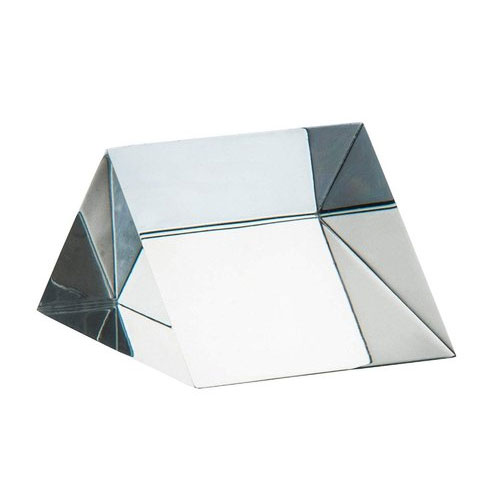

Right Angle Prism - 25 mm

Right Angle Prism - 25 mm Right Angle Prism - 25 mm.

Specifications:
Material BK7 Grade A optical glass/Fused Silica
Item Code RT-51
