Linear Interferometer

Laser Interferometer LSP 30-3D is the two frequency interferometer used mainly for investigation of the machine tools geometry. The small size and weight makes it easy for transportation which is very important factor in the service applications. WIN 98/2000/XP/Vista compatible software makes laser system easy for operation and measurements process. The measurement software, prepared according with PN - 93 M55580 and ISO/DIS 230 standard, gives possibility to prepare measurements reports necessary for new produce machine tools. The reports might be prepared according to PN - 93 M55580, ISO 230-2, NMTBA, VDI/DGQ 3441 and BSI BS 4656 Part 16 standard.

Very good technical parameters allows to use interferometer in scientific laboratory for the precisely positioning and length standard calibration.

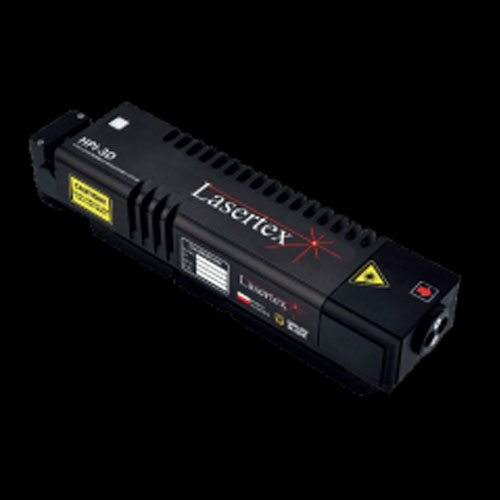

Linear-InterferometerLaser Interferometer LSP 30-3D

Features:

Linear-Interferometer
Measurement abilities:

Measurement Parameters
Measurement Range Resolution Accuracy
Distance 0-30 m 0,001 µm ± 0,41 ¼m/m in air
± 0,9 ¼m/m for steel
Velocity 0-0,3 m/s (0,1 m/s)* 0.25 µm/s 0,1%
Angular 0-3600 arc sec 0,01 arc sec ±0,1%
Straightness(with angular optics) 0 - 12 (± 3 mm flatness measurement range) 0.02 µm (for 100 mm base) ± 0,5%
Straightness measurement (with 3D measurement) 0-10 m 0,1 µm ± 5 ¼m x L(L in meters)
Straightness measurement (with wollaston prism ) 0-3m 0,8 - 10 m (± 3 mm flatness measurement range) 0,01 ¼m 0,1 ¼m ±1%
± 2,5 %
Flatness** 0-12 m (± 3 mm) ± mm flatness measurement range) 0,02 µm ( for 100 mm base) ± 0,5 %
Squareness(3D measurement) 0-6 m 1 arc sec ±2"
Squareness(Wollaston prism) ± 1000 arc sec 0,03 arc sec ±1% ± (1,5 arc sec)
Rotary Positioning ±5 2 arc sec ±0,2 %

* - the max. velocity for 0,001 ¼m resolution is 0,1 m/s
** - the 0 - 15 m range on request, diagonal method and grid method
